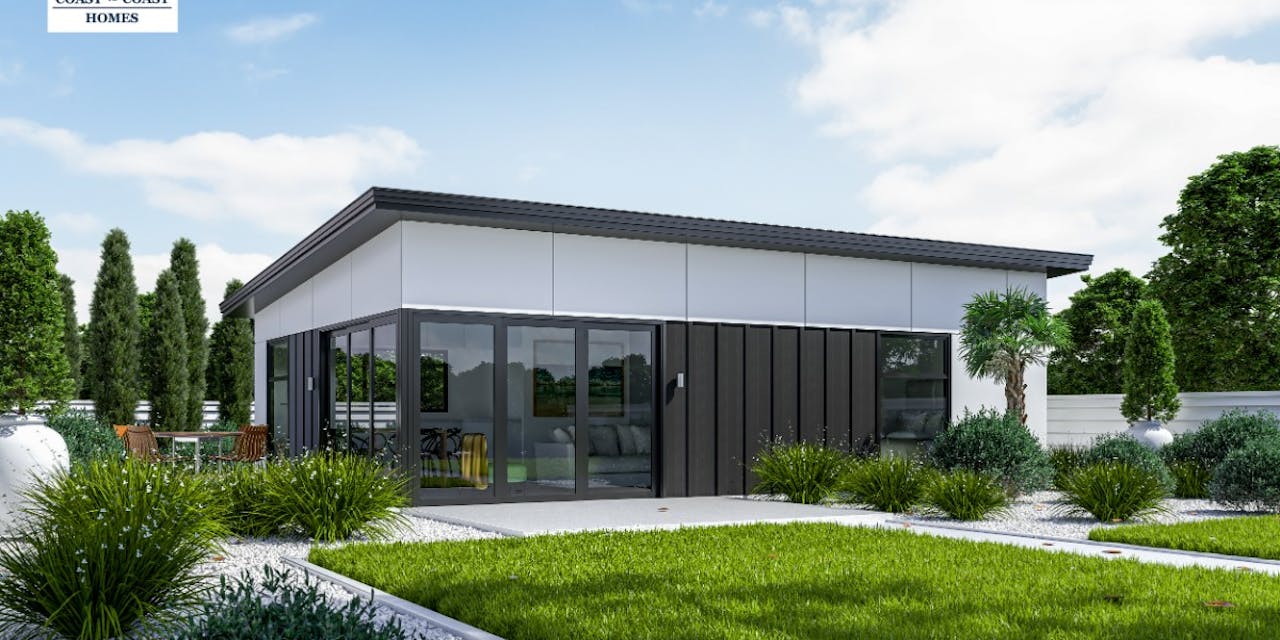

Artist impression only - additional structures not included

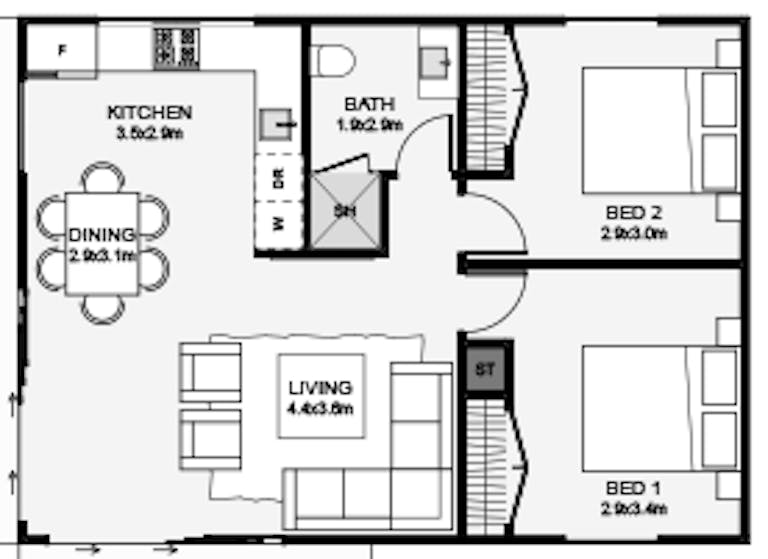

Small and modern, this two-bedroom dwelling is a perfect mix of style and usable space. Inside, the open plan living, dining and kitchen help maximise usable space within such a small footprint. This small home is sure to maximise the land it sits on whether that’s in the backyard or at the beach!
Below is a list of all the inclusions for every new Coast To Coast Kitset Home. These apply to all standard, unaltered kitset plans.
-
Permit plans
Plans though council with building consent (council fees not included)
-
Wall framing
Pre-cut and pre-nailed wall framing H1.2
-
Roof framing
Gang nailed engineer designed trusses. H1.2 treated
-
Extra timber
Beams, rafters, perlins, roof and soffit framing and ceiling batons.
-
Roofing
Colorsteel/Colorcoat corrugated longrun iron complete with self-supporting underlay, screws, flashings & barges (standard colour range)
-
Cladding
Our standard cladding options are: 230mm BGC Duraplank, Shadowclad Plywood and Weathertex cladding products
-
Building wraps and tapes
Thermocraft Watergate Plus and Masons 40 Below flashing tape
-
Fascia
Colorsteel/Colorcoat 175mm or H3. pine (Ex 200 x 25)
-
Soffit
Camintel 4.5mm Eaves Lining and PVC joiners
-
Spouting
Colorsteel/Colorcoat Quad gutter or White Marley PVC gutter with 80mm White PVC downpipes
-
Windows and Doors
Fairview One range double glazed aluminium joinery with obscure glass to bathrooms and toilets.
-
Insulation
Bradford Gold R2.6 in walls and R3.6 in ceilings
-
Interior linings
10mm Gib standard plasterboard for walls and ceilings. 10mm Gib Aqualine to wet areas
-
Scotia
55mm Gib Cove classic
-
Skirting and Architraves
60mmx10mm pine skirting and 40mmx10mm pine architraves
-
Interior doors
Pre-hung MDF flush panel doors and pine jambs. Wardrobe sliding doors with tracks and runners. Cavity sliders kits.
-
Door hardware
Locware single leaver handles (Naples, Florence and Horizon ranges)
-
Kitchen
Hafele Impressions range flatpack kitchen, Formica rolled edge or square edge bench top with 1 or 1 1/2 bowl stainless insert with drainer
-
Kitchen Appliances
Omega 4 function oven, Omega 60cm ranhehood Omega Electric or gas cooktop.
-
Shower
900x900 Englefield Valencia Elite
-
Slide Shower
Englefield Studio pin slide shower (polished chrome)
-
Bath
Englefield Valencia Bath
-
Vanity
Englefield Valencia Vanity (size as per plan)
-
Tapware
Englefield ‘Studio pin’ range single leaver tapware
-
Toilet
Valencia BTW toilet suite
-
HWC
180ltr mains pressure HWC (upgrade to gas califont also avaliable)
-
Laundry tub
Robinhood/Nouveau supertub with single lever tapware
Below is a list of all the exclusions for every new Coast To Coast Kitset Home. These apply to all standard, unaltered kitset plans.
-
Permit fees
Any permit fees or charges
-
Construction labour costs
Any costs for labour or construction
-
Additional structures
Any decking, verandahs and additonal structures
-
Council additions
Any additions required by the council to the permit plans other than solely the house,e.g. driveways, ground levels, etc
-
Any alterations to standard plans
We can change around our standard plans to suit at and extra cost of $575 inc GST
-
Any required engineering designs
Any engineering designs that are required for the building consent.
-
Foundations and Floor
We can supply a wooden piled floor kit at and extra cost if you wish for your house to be on a piled foundation.
-
Fire and hearth
Fires can be added to our council plans so that a fire can be added during the build stage.
-
Nails, screws or glue
No Fixings are included with our kitsets as this is upto the discression of the builder as to what is used/how much is used.
-
Plumbers piping, s/traps and valve kits
We do not include any materials for the plumber.
-
Electrical wire and fittings
Electritions will supply their own wires and fittings to suit your job.
-
Heated towel rails
-
Gib stopping and any decorating materials
Painter and Plasterer will suplly their own materials
-
Shelving or wardrobe organisers
-
Floor coverings
-
Freight
Please get in contact with us for a freight price to your site
-
H1 Energy Efficiency
Since all H1 energy efficiency requirements are not yet mandatory in all regions, we are able to discuss this with you.
You will receive your kitset in instalments on the schedule shown below.
First delivery
- Floor kit - (if included)
Second delivery
- Frames
- Trusses
- Loose timber
- Building paper
- Window tapes and corners
- Soffit linings and joiners
Delivery by supplier
- Fascia, gutter and downpipes (if steel)
- Roof
- Flashings
- Roof underlay
- Mesh underlay (if required)
- Screws and barges
- Soffit flashings (steel)
Third delivery
- Cladding and accessories
- Cavity baton
- Flashings
- Soffit flashings (timber)
Delivery by supplier
- Windows and doors
Fourth delivery
- Batts
- GIB
- Skirting
- Gibb cove
- Architraves
- Internal doors
- Door handles
Fifth delivery
- Kitchen (Flatpack)
- Appliances
- Slide Shower
- Bath
- Vanities
- Tap ware
- Toilets
- HWC/Gas Califont
- Laundry tub
